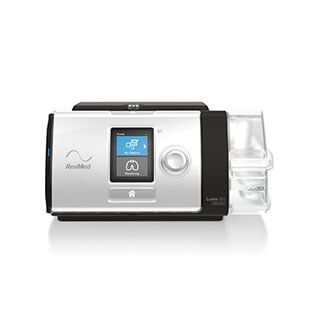

Resmed Lumis 100 Vpap st​ BiPAP Machine: Advanced Non-Invasive Ventilation for Respiratory Care

Introduction

The resmed lumis 100 vpap st​ is a state-of-the-art non-invasive ventilator designed to provide personalized ventilation for spontaneously breathing, non-dependent patients with respiratory insufficiency. Whether used in home care settings or hospitals, this device offers advanced features to ensure optimal patient comfort and therapeutic efficacy.

Key Features

1. Intelligent Backup Rate (iBR)
   The iBR system delivers backup breaths only when necessary, responding to apneas or insufficient respiratory effort. By avoiding unnecessary interventions during natural pauses like sighs or coughs, iBR enhances patient comfort and compliance.

2. Vsync Technology
   Vsync ensures excellent patient-ventilator synchrony, even in the presence of significant leaks. This technology adapts to the patient’s breathing patterns, providing consistent support throughout the therapy session.

3. TiControl™
   Ti Control allows clinicians to set minimum and maximum limits on the patient’s inspiratory time, promoting spontaneous breathing and reducing the work of breathing. This feature is particularly beneficial for patients with varying respiratory patterns.

4. Trigger and Cycle Sensitivity
   With five adjustable levels of sensitivity, this feature optimizes the device’s response to the patient’s breathing efforts, ensuring timely and appropriate support.

5. Climate Control Auto
   When used with the HumidAir™ heated humidifier and ClimateLineAir™ heated tube, the resmed lumis 100 vpap st​ automatically adjusts temperature and humidity levels for optimal comfort, eliminating the need for manual settings.

6. QuickNav Interface
   The intuitive QuickNav feature allows healthcare providers to toggle between settings and monitoring screens with a simple double-click, facilitating efficient adjustments and real-time monitoring.

7. ResScan Software Compatibility
   The device is compatible with ResScan software, enabling clinicians to download therapy data, adjust settings, and analyze patient progress through detailed metrics, including AHI, leak, and pressure.

8. Lightweight and Portable Design
   Weighing approximately 1.1 kg, the resmed lumis 100 vpap st​ is designed for easy transport, making it suitable for both home and hospital use.

Technical Specifications

• Pressure Range: 2–25 cm H₂O (S, T, ST, and PAC modes), 4–20 cm H₂O (CPAP mode)

• Respiratory Rate: 5–50 breaths per minute

• Weight: 1.1 kg (device only)

• Dimensions: 116 mm x 225 mm x 150 mm

• Noise Level: 26.6 dBA at P=10 cm H₂O

• Power Supply: 90W, 100–240V, 50–60Hz

• Wireless Connectivity: 2G GSM

• Operating Pressure Range: 4–25 cm H₂O

• Supplemental Oxygen: Recommended maximum flow of 15 L/min

• FAA Compliance: Meets RTCA/DO-160G, Section 21, Category M standards for in-flight use

Indications for Use

The resmed lumis 100 vpap st​​ is indicated for patients weighing over 13 kg who require non-invasive ventilation due to conditions such as:

• Chronic Obstructive Pulmonary Disease (COPD)

• Obstructive Sleep Apnea (OSA)

• Central Sleep Apnea

• Neuromuscular Disorders

• Post-operative Respiratory Support

Benefits

• Enhanced Patient Comfort: Features like iBR, Climate Control Auto, and TiControl contribute to a comfortable therapy experience.

• Improved Compliance: The device’s user-friendly interface and automatic settings encourage consistent use.

• Remote Monitoring: Integration with ResMed’s AirView™ system allows for remote monitoring and adjustments, ensuring continuous care.

• Durability and Portability: Its lightweight design and robust construction make it suitable for various settings.

Conclusion

The resmed lumis 100 vpap st​ BiPAP machine stands out as a reliable and advanced solution for non-invasive ventilation. Its combination of intelligent features, ease of use, and adaptability to patient needs makes it an excellent choice for healthcare providers aiming to deliver personalized respiratory care. Whether in a hospital or home setting, the Lumis 100 VPAP ST ensures that patients receive the support they need for optimal respiratory health.
